Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

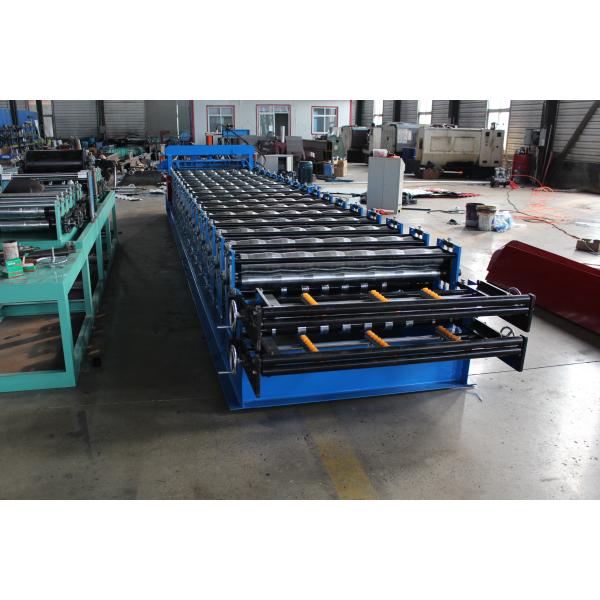

This 2 in 1 roof roll forming machine can make two different tiles drawings in one machine, which can save more space and money than using two different machines.
Equipment Detailed Parameters:
| 1 | Suitable Material | PPGL,PPGI ,PI,GI |
| 2 | Width of the raw material | 1000mm |
| 3 | Rows of rollers | 15 rows & 16 rows |
| 4 | Dimension | 7300*1550*1200mm |
| 5 | Main servo | 7.5kw |
| 6 | Hydraulic station power | 11kw |
| 7 | Thickness of raw material | 0.2-0.8mm |
| 8 | Productivity | 15-20m/min |
| 9 | Diameter of shaft | ￠70mm |
| 10 | Voltage | 380V 50Hz 3phases |
| 11 | Frame | 350H steel |
| 112 | Middle plate | 16mm |
Application
The double-layer tile machine is economical and can combine two roll forming machines into one. In other words, it saves floor space, and the equipment cost of a double-layer tile machine is much lower than that of two single-layer machines. The profiled plate rolled by the double-layer tile machine has no defects and is beautiful and novel. The appearance is flat, the corrugation is uniform, and the utilization rate is high.
Advantage
Cangzhou willing roll forming machine manufacturer, we have many years of industry experience in design, research and development and production of colored steel equipment. We have a qualified team, skilled talents and strong technical force in design, research and development, production, marketing and after-sales service. , Strong independent research and development capabilities and production and processing equipment. The perfect after-sales service system has enabled our products to be well received by domestic and foreign customers.
